UNI-T UTP3315TFL-II DC Regulated Power Supplier
UNI-T UTP3315TFL-II is a single-channel transformer DC power supply with an LED display. UNI-T UTP3315TFL-II ensures the power supply of electronic devices and circuits with DC voltage in a range of 0 to 30 V and with the current in a range of 0 to 5 A.
7,500.00৳
UNI-T UTP3315TFL-II DC Power Supplier are ones with high quality and high stability, which have excellent index, pure and reliable output,4-digit voltage and current LED display, short-circuit protection, overload protection, reverse polarity protection and other functions. High stability and strong reliability make them become ideal tools for institutions of higher education, enterprise production lines, household appliance repair companies, etc.
- 4-digit Voltage
- DC Regulated Power Supplies
- Current LED display
- Short-circuit protection
- Overload protection
- Reverse polarity protection
Features UNI-T UTP3315TFL-II DC Power Supplier :
- High-quality and stable device.
- Data display: LED indicators.
- Short-circuit protection, overload protection, reverse polarity protection etc.
- Adjustability of the required current value.
- Automatic conversion of voltage and current stabilization.

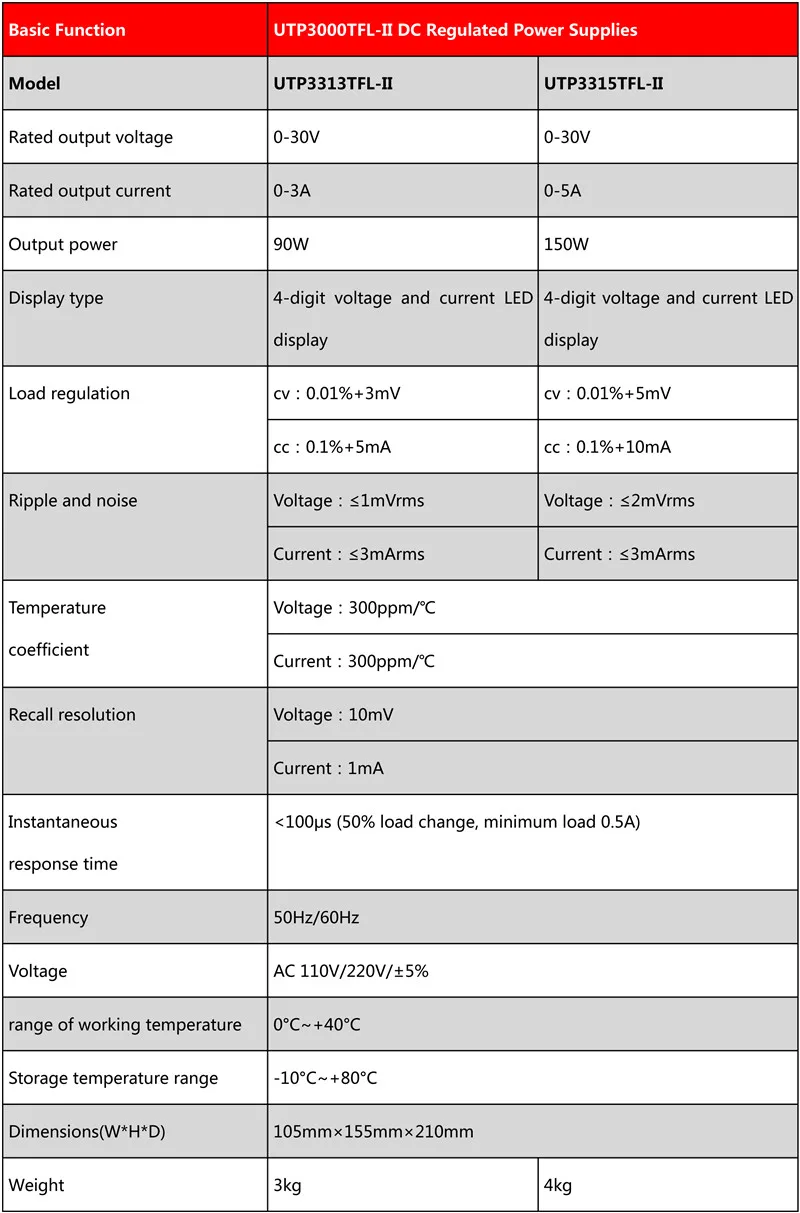

| General Specification | |
| Output voltage | 0-30 V |
| Output current | 0-5 A |
| Output power | 150 W |
| Load regulation | CV: ≤0.01%+5 mV, CC: ≤0.1%+10 mA |
| Accuracy (25°C±5°C) | Voltage: <0.5%+20 mV Current: <0.5%+10 mA |
| Ripple and noise | ≤2 mVrms |
| Output regulation resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
| Display | LCD |
| Power | input voltage: 110 V/220 V±5% AC; frequency: 50 Hz/60 Hz |
| Dimensions | 105 mm × 165 mm × 249 mm |
| Weight | 4 kg |
| Shipment Weight | 4.1 kg |
| Shipment Dimensions | 31 × 23 × 17 cm |
Documentation:
Package Includes:
1 x UNI-T UTP3315TFL-II DC Power Supply
