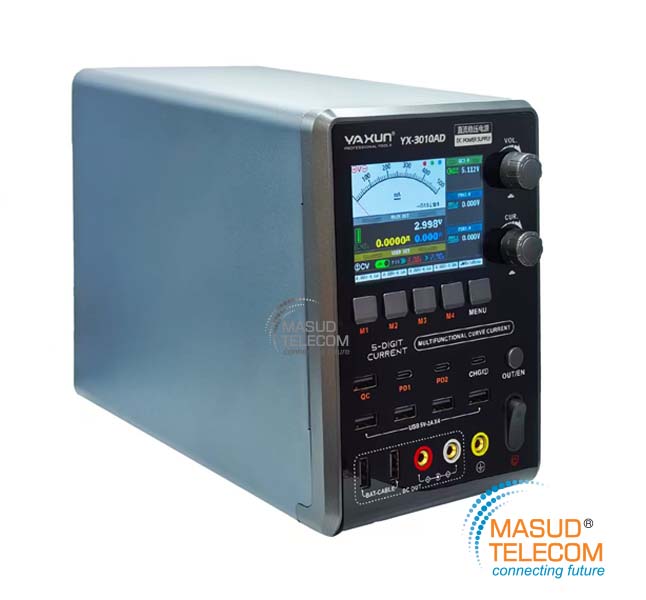

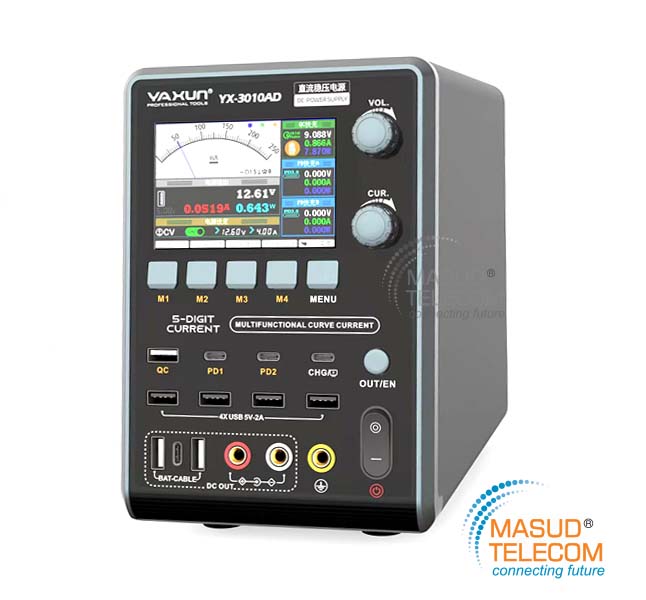

YAXUN YX-3010AD LCD Display Intelligent Power Supply 30V 10A
15,500.00৳
30V 10A Overcurrent Protection YAXUN YX-3010AD Intelligent Controlled Power Supply
With Curve Current Mode / Meter Mode / Digital Mode
Brand: Yasun
Model: YX-3010AD
Type: Intelligent DC power supply
Input voltage: 110V or 220V (If need 110V, please note)
Operational guidelines:
Check before turning on the device for the first time
Check if the input voltage parameter (110V/220V) is set to AC.
The power input socket corresponds to the voltage used in the electrical appliance.
Environment. If not, please do not turn on the machine and contact the seller.
Voltage control
Turn the voltage adjustment knob directly to adjust the current output voltage.
The voltage can be on the display screen. Pressing the button will change it.
Voltage adjustment speed between 0.1V or 0.5V
Current regulations
Turn the voltage knob directly to adjust the output current limit and
The destination can access the set voltage limit value on the display screen.
Lock and unlock function
Press and hold the voltage adjustment button to lock the operation, causing the voltage to not work.
Adjustable
Press and hold the current button to lock the current knob adjustment function.
Makes the electric current unacceptable
Memory storage
There are 4 voltage storage channels, during use, press the corresponding one.
The bottom button can export the set voltage and current values with one click.
Press and hold the button below the relevant storage slot to store.
Current output sets the voltage and current on the corresponding channel.
Go to the pressed button
Adjustable USB output
Mainly used for mobile cable opening machine, maximum output voltage
Can be set between 0~8.4V in configuration parameters.
Charging detection port
QC/PD1/PD2 three fast charging ports can be displayed on the screen.
Check whether the charging voltage and current are consistent.
Enter fast charging
Universal USB charging port
Comes with 4 standard hanging 5V2A USB charging ports, charging
Voltage and current are not displayed on the screen.
Continuous overcurrent protection
However, when the parameter is set to constant pressure or constant value,
Current mode in constant voltage mode, the output will be sent automatically.
Disconnect and reset to protect powered devices when power is out
Exceeded the set value
